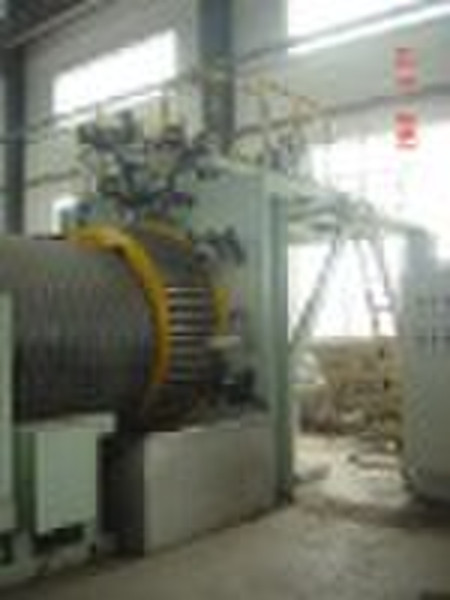

Winding Pipe Production Line

Detailed Product Description Absorbing advanced foreign technology, we have designed and developed large diameter winding HDPE pipe production lines. Our extrusion line can produce pipes with diameter from 200mm to 2500mm. These durable pipes can replace the common steel and concrete pipes in drainage system. According to different purpose, there are four hardness degrees. The maximum hardness can attach 16KN/m2. It is suitable for the sour or alkali liquid below 10%. This pipes offers corrosion resistance, light weight, long service life (50years) and easy fix. The pipes are widely used as sewer in highway, municipal construction, uptown, playground, square, mine, bridge, and agriculture.Specifications: 1) Can produce 200 to 1,200mm ,1,600mm, 1,500 to 2,500mm 2) Rated pressure: S1=4KN/m2, S2=8KN/m2 3) Extruders:a) Item SJ90 single screw extruder SJ65 single screw extruderb) Screw diameter: 90mm, 65mmc) Screw L/D ratio 30:1d) Screw rotation speed: 120r/mine) Main motor power: 132 45kWf) Heating power: 40 22kWg) Max. Output: 350kg/h, 150kg/h 4) Heating power of two dies: 22kWa) 50 vacuum calibration tankb) Length: 6,000mmc) Power of vacuum pump: 4kWd) Equipped with water level control and vacuum control devicese) Equipped with a moving motor 5) Haul-off unit: min. 20,000N 6) Forming machinea) Reducer: imported high quality productb) Motor power: 11kW, 3kWc) Rotation speed of rolls: 0 - 52r/min 7) Cutting Machinea) Cutting range: 200 to 1,200mmb) Motor power: 7.5kW 8) Turn over devicea) Length: 6,000mmb) Automatic discharge (pneumatic) 9) Electric: adopting Euro thermal DC drive, FUJI transducer, SIEMENS contractorsand breaker, B&R (Austria) program control system 10) Other accessories:a) Auto-charger: 2 setsb) Water chiller: 2 sets
